製品情報 長桝定盤 OS-123B OS-123B

●平行台や、枕等の測定、罫書等、定盤の代用品としてご使用いただけます。
●平面を4面共、平行・直角仕上。
●2個を1組の同一加工に製作可能(特注扱いにて)
●寸法公差 A・B級は 300㎜まで±0.04、600㎜まで±0.08、600㎜超±0.1
機械仕上は各寸法約±1㎜です。

LONG-MEASURE SURFACE PLATE (LONG BLOCK)
●This item can be used as parallel stand, measuring tools,
mounting tools to be laid-out and as substitute of surface plate.
●All sides are finished parallel, flat and square.
●We will process 2 pcs set equally.(By special order handling)

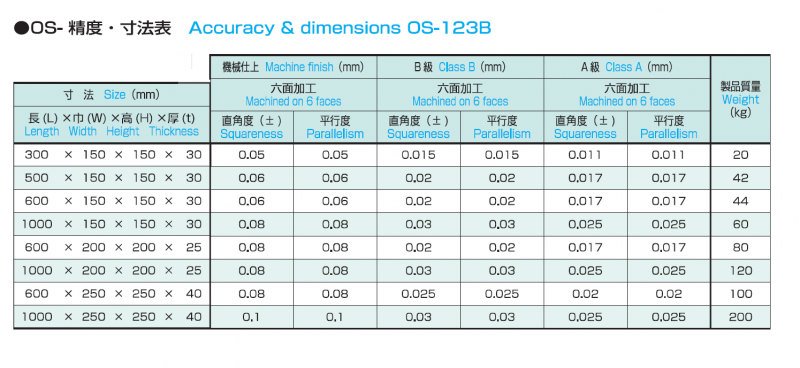

●Dimentional tolerance
For classes A and B, the tolerance for distances up to 300㎜ is ±0.04
up to 600㎜ is ±0.08, and over 600㎜ is ±0.1.
The machine finish tolerance for each dimension is ±1㎜.
